| SPECIFICATIONS: |
| Narrowband (with Buffer): |
| Model Number |
Frequency Range(GHz) |
OutputPower (dBm) |
10kHz SSB Phase
Noise (dBc/Hz)> |
100kHz SSB Phase Noise (dBc/Hz) |
DC Bias Supply |
| MVO020203H |
2.05 - 2.25 |
3.5 |
-89 |
-112 |
+3V @ 35mA |
| MVO020204H |
2.25 – 2.5 |
4.5 |
-89 |
-115 |
+3V @ 35mA |
| MVO020205H |
2.6 – 2.8 |
5 |
-88 |
-115 |
+3V @ 35mA |
| MVO020304H |
2.75 – 3.0 |
4.5 |
-89 |
-114 |
+3V @ 37mA |
| MVO030304H |
3.15 – 3.4 |
4.9 |
-88 |
-113 |
+3V @ 39mA |
| MVO030304H |
3.35 – 3.55 |
4.7 |
-89 |
-112 |
+3V @ 41mA |
| MVO030304H |
3.55 – 3.9 |
4.7 |
-87 |
-112 |
+3V @ 42mA |
| MVO030405H |
3.9 – 4.45 |
5 |
-81 |
-106 |
+3V @ 30mA |
| MVO040504H |
4.45 – 5.0 |
4 |
-79 |
-105 |
+3V @ 30mA |
| MVO050502H |
5.0 – 5.5 |
2 |
-80 |
-103 |
+3V @ 27mA |
| MVO050602H |
5.5 – 6.1 |
2 |
-80 |
-102 |
+3V @ 27mA |
| MVO050604M |
5.5 – 6.5 |
4.5 |
-77 |
-97 |
+5V @ 20mA |
| MVO050610H |
5.8 – 6.8 |
10 |
-82 |
-105 |
+3V @ 100mA |
| MVO050605M |
5.8 – 6.9 |
5.0 |
-77 |
-97 |
+5V @ 20mA |
| MVO060604H |
6.1 – 6.72 |
4.5 |
-73 |
-101 |
+3V @ 31mA |
| MVO060705M |
6.4 – 7.4 |
5.0 |
-77 |
-97 |
+5V @ 20mA |
| MVO060711H |
6.8 – 7.4 |
11 |
-80 |
-106 |
+3V @ 80mA |
| MVO060704M |
6.8 – 7.9 |
4.5 |
-77 |
-97 |
+5V @ 20mA |
| MVO070805M |
7.4 – 8.6 |
5.0 |
-77 |
-97 |
+5V @ 20mA |
| MVO070814H |
7.8 – 8.7 |
14 |
-80 |
-103 |
+3V @ 77mA |
| MVO242414U |
24-24.25 |
14 |
- |
- |
- |
|
| Broadband: |
| Model Number |
FrequencyRange (GHz) |
OutputPower (dBm) |
10kHz SSB
Phase Noise (dBc/Hz) |
10kHz SSB Phase Noise (dBc/Hz) |
DC Bias Supply |
| MVO051005H |
5 –10 |
5 |
-65 |
-95 |
+5V @ 55mA |
| MVO081205H |
8 – 12.5 |
5 |
-65 |
-93 |
+5V @ 55mA |
|
| With-Divider: |
| Model Number |
FrequencyRange
(GHz) |
OutputPower
( dBm) |
Divider |
10kHz SSB
Phase Noise
(dBc/Hz) |
100kHz SSB
Phase Noise
(dBc/Hz) |
DC Bias Supply |
| MVO101107D2D4H |
10.43 – 11.46 |
7 |
Fo/2 & 4 |
-85 |
-110 |
+3V @ 275mA |
| MVO111207D2D4H |
11.17 – 12.02 |
7 |
Fo/2 & 4 |
-85 |
-110 |
+3V @ 275mA |
| MVO111210D2D4H |
11.5 – 12.5 |
10 |
Fo/2 & 4 |
-85 |
-110 |
+5V @ 200mA |
| MVO121308D2D4H |
12.4 – 13.4 |
8 |
Fo/2 & 4 |
-85 |
-110 |
+5V @ 260mA |
| MVO131308D8H |
13.2 – 13.5 |
-8 |
Fo/8 |
-83 |
-110 |
+5V @ 230mA |
| MVO131407D2D4H |
13.6 – 14.9 |
7 |
Fo/2 & 4 |
-82 |
-110 |
+5V @ 260mA |
| MVO141506D8H |
14 – 15 |
6 |
Fo/8 |
-75 |
-110 |
+5V @ 260mA |
| MVO141506D2M |
14.2 – 15.2 |
6.0 |
Fo/4 |
- |
-88 |
+4V @ 110mA |
| MVO141505D2M |
14.7 – 15.7 |
5.0 |
Fo/4 |
- |
-88 |
+4V @ 110mA |
| MVO232411D16H |
23.8 – 24.8 |
11 |
Fo/16 |
-70 |
-98 |
+5V @ 225mA |
| MVO373909D2U |
37 – 39 |
9 |
Fo/2 |
- |
-100 |
+4.5/-4.5V@120/3mA |
| MVO383807D3U |
38 – 38.5 |
7 |
Fo/3 |
-48 |
-75 |
+4.5/-4.5V@110/5mA |
| MVO383804D3U |
38 – 38.5 |
4 |
Fo/3 |
-52 |
-82 |
+5V @ 180mA |
|
| |
| HOW TO ORDER: |
 |
| |

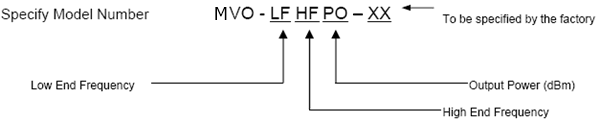

| Example: To order a VCO with Low End Frequency at 5.8GHz and High End Frequency at 6.8 GHz with Output Power at 10dBm , specify MVO050610-XX. |
| |
| |
